Birthday Cake | OpenGL Project | Computer Graphics Project | With Free Source Code



Birthday Cake OpenGL Project ๐Ÿฑ๐ŸŽจ: Unveiling OpenGL Magic ๐ŸŒŸ


Project Overview: A Sweet Treat in OpenGL

Welcome to an exciting adventure into OpenGL programming, where we will create a delightful birthday cake, complete with colorful layers, a heart, and a โ€˜Happy Birthdayโ€™ message! This project serves as a fun introduction to 2D graphics programming and is perfect for those looking to explore the basics of shapes, colors, and transformations in OpenGL. As you embark on this journey, you will not only gain hands-on experience but also learn to appreciate the beauty and creativity that can be achieved with code.

Features of the Project

In this OpenGL project, you will create a visually stunning birthday cake that includes:

  • ๐ŸŽ‚ A Beautifully Layered Cake: Constructed using polygons and filled with vibrant colors to capture the joy of the celebration.
  • โค๏ธ A Heart Shape: Added to represent love and affection on this special day, drawn using polygons to create a romantic touch.
  • ๐ŸŽ‰ A "HAPPY BIRTHDAY" Message: Crafted from OpenGL line primitives, delivering your warm wishes in style.
  • ๐ŸŽจ Decorative Elements: Such as arrows and boxes, which enhance the aesthetics of the cake, making it more festive.

By the end of this project, you will have a colorful graphics representation that is not only pleasing to look at but also interactive and fun!


Breaking Down the Code: Understanding the Core Elements ๐Ÿง‘โ€๐Ÿ’ป

To bring this delightful birthday cake to life, we will make use of some core OpenGL functions that allow us to set up the display context, draw polygons for the cake layers, and render our text. Letโ€™s dive into the details!

Initializing the OpenGL Environment

Before we begin drawing our cake and decorations, we must properly configure the display settings. This is where the `init()` function comes into playโ€”it sets the background color and defines a 2D coordinate system for our graphical elements.

void init(void) {
    // Set the background color to white
    glClearColor(1.0f, 1.0f, 1.0f, 1.0f);

    // Establish the projection for 2D rendering
    glMatrixMode(GL_PROJECTION);
    gluOrtho2D(0.0, 32.0, 0.0, 33.0); // Define a 2D orthographic viewing area
}

Explanation:

  • `glClearColor`: This function determines the color that will fill the window when it's cleared. Here, we set it to white to give a clean backdrop for our cake.
  • `glMatrixMode(GL_PROJECTION)`: This sets the current matrix to the projection matrix, which we will modify next.
  • `gluOrtho2D`: Defines the 2D clipping region, specifying boundaries for the X and Y axes. This allows us to determine how objects will be viewed in our scene.

Building the Cake Layers ๐ŸŽ‚

Next, we move on to constructing the cake itself. We will use the `GL_POLYGON` primitive to stack multiple cake layers, each with its unique color, creating a deliciously layered effect.

// Draw the first layer of the cake
glColor3f(1.0f, 0.5f, 0.0f); // Set color to a warm orange shade
glBegin(GL_POLYGON); // Begin defining a polygon
    glVertex2i(4, 5);  // Bottom-left corner
    glVertex2i(27, 5); // Bottom-right corner
    glVertex2i(27, 9); // Top-right corner
    glVertex2i(4, 9);  // Top-left corner
glEnd(); // End the polygon definition

// Draw the second layer of the cake
glColor3f(1.0f, 1.0f, 0.0f); // Change color to bright yellow
glBegin(GL_POLYGON); // Start another polygon
    glVertex2i(6, 9);  // Bottom-left corner
    glVertex2i(25, 9); // Bottom-right corner
    glVertex2i(25, 13); // Top-right corner
    glVertex2i(6, 13);  // Top-left corner
glEnd(); // Close the polygon definition

Explanation:

  • `glColor3f`: Sets the current drawing color using RGB values. The cake layers are decorated with warm and inviting colors.
  • `glBegin(GL_POLYGON)`: Starts the definition of a polygon shape. We will define the corners of our square for each layer of the cake here.
  • `glVertex2i(x, y)`: Specifies the coordinates for the vertices of the polygon. By connecting these vertices, we form the cake layers.
  • `glEnd()`: Completes the polygon definition.

Adding Decorative Elements ๐ŸŽ€

To further enhance the cake's charm, we will add decorative elements, such as hearts and candles. The following code demonstrates how to create a heart shape using polygons.

// Drawing a red heart shape
glColor3f(1, 0, 0); // Set color to red for the heart
glBegin(GL_POLYGON); // Define a polygon for the heart
    glVertex2i(6, 18); // Initial point
    glVertex2i(9, 21); // Upper left curve
    glVertex2i(9, 22); // Top tip of the heart
    glVertex2i(8, 23); // Left tip of the heart
    glVertex2i(7, 23); // Peak of left curve
    glVertex2i(6, 22); // Center of the heart
    glVertex2i(5, 23); // Peak of right curve
    glVertex2i(4, 23); // Right tip of the heart
    glVertex2i(3, 22); // Top right curve
    glVertex2i(3, 21); // Upper right
glEnd(); // Close the heart shape definition

Explanation:

  • Heart Shape Coordinates: The vertices of the heart shape are placed to create a visual representation of a heart. Each point is carefully chosen to ensure the heart has its characteristic curves.
  • Color Setting: The heart is painted bright red, symbolizing love and celebration.

Displaying the Birthday Message ๐ŸŽ‰

Next, we will create a custom message that reads "HAPPY BIRTHDAY." The text will be constructed using OpenGL line primitives to ensure it stands out effectively.

// Draw the letter H as part of the birthday message
glColor3f(0, 0, 1); // Set color to blue for the text
glBegin(GL_LINES); // Begin drawing lines for text
    glVertex2i(5, 26); // Start of left vertical line
    glVertex2i(5, 30); // End of left vertical line
    glVertex2i(3, 28); // Start of the horizontal line
    glVertex2i(5, 28); // End of the horizontal line
glEnd(); // Close the definition for the letter

Explanation:

  • Text Color: A blue color is chosen for the text to create contrast against the white background and colorful cake.
  • GL_LINES: This primitive allows for the construction of text by connecting lines between specified vertices, effectively composing letter shapes.

Enhancing Interaction: Adding Controls ๐Ÿ•น๏ธ

To make the celebration more interactive, consider implementing keyboard and mouse controls to enrich the user experience. You could potentially add features like:

  • Pressing a key to light up the candles on the cake.
  • Clicking on the cake to simulate cutting a slice.

These features can be integrated using OpenGL functions such as `glutKeyboardFunc()` and `glutMouseFunc()` to handle user inputs efficiently.

OpenGL Functions Used

Throughout the project, several OpenGL functions play a vital role in rendering the graphics and ensuring smooth operation:

  • `glBegin(GL_POLYGON) ... glEnd()`: This pair commences and concludes the definition of the various shapes (including layers of the cake and the heart).
  • `glColor3f(r, g, b)`: Used to specify the RGB color for drawing shapes.
  • `glVertex2i(x, y)`: Designates the (x, y) coordinates for each vertex in our polygons.
  • `glFlush()`: Ensures that all OpenGL commands are executed, allowing us to visualize the graphics.


How to Run the Program

Hereโ€™s a step-by-step guide to running the OpenGL birthday cake program on your system:

  1. Install OpenGL and GLUT: Make sure these libraries are set up correctly on your system. You can find installation guides for various platforms online.
  2. Copy and Paste Code: Take the provided C++ code and paste it into your preferred editor, such as Code::Blocks or Dev-C++.
  3. Compile the Code: Compile the program to check for errors. Ensure that all libraries are linked correctly.
  4. Run the Program: Execute your compiled program, and watch the window pop up displaying the "Happy Birthday" message along with your beautifully crafted cake!

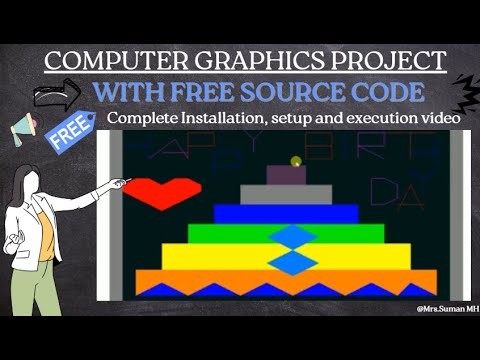

Expected Output...

Upon running this program, you will be greeted with:

  • A colorful cake boasting multiple layers, each visually distinct with vibrant colors.
  • A heart symbol atop the cake, representing love and care.
  • The text HAPPY BIRTHDAY, brought to life through OpenGL line primitives.
  • Additional decorative elements such as arrows and boxes to enhance the celebratory ambiance.

Final Thoughts: The Beauty of OpenGL ๐ŸŒŸ

This Happy Birthday OpenGL Project demonstrates the incredible capabilities of OpenGL, showcasing how simple techniques can create visually stunning graphics. From designing a layered cake to crafting intricate text, the potential for creativity in coding is boundless. This engaging exercise serves as a fantastic introduction to graphics programming and opens the door to further exploration in the realms of computer graphics.

If you found this guide helpful and inspiring, we encourage you to leave a comment below. Letโ€™s continue to celebrate creativity and innovation in coding together! ๐ŸŽˆ

Future Enhancements

To further expand upon your Happy Birthday Computer Graphics Project, here are five ideas for future enhancements:
  1. Adding Candles on the Cake: Consider adding animated candles on top of the cake that light up when a key is pressed.
  2. Animating the Text or Cake Layers: Use simple animation techniques to bring motion to the text or layers of the cake, such as floating or bouncing effects.
  3. Implementing Interactive Features: Allow the user to interact more by clicking or pressing keys to trigger specific actions, such as playing a sound effect or displaying special messages.
  4. Creating a User Interface: Develop a UI that allows users to customize the message or change the cake design and colors.
  5. Multi-Layered Decorations: Add additional decorative features, such as balloons or confetti, that can fall from the top of the screen or pop up as additional celebrations.
With these ideas, you can take your project to the next level, encouraging creativity and dynamic interactions that will enhance the user experience.

Feel free to share your implementations or thoughts as you explore these enhancements! Happy coding! ๐ŸŽ‚๐ŸŽ‰

Explore More! ๐ŸŒŸ

Don't forget to check out other exciting OpenGL projects to inspire your creativity and push the boundaries of what you can achieve in graphics programming! Happy creating! Here.
